  Product Center

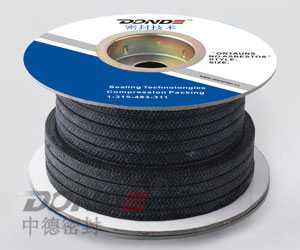

Carbonized Fibre Braided Packing With Graphite Core
Item No:ZD-P1340
Description:Carbonized Fibre Braided Packing With Graphite Core which has been treated by corrosion inhibition, greatly improves the anti - extrusion capacity of graphite, and is more competent than the traditional graphite plate in the steam seal under high temperature and high pressure. According to customer requirements, it can be molded into high carbon fiber graphite core packing ring, such as ZD-RP1340.
Common packing
Equipment:
High temperature and high pressure steam valves, pumps, and so on
Industry:
It is mainly used for high temperature and high pressure medium of pumps and power plants.
Medium:
It can be applied to all steam valves, steam turbines, general valves, expansion joints, high temperature slide valves, and low speed liquid pump.
Product specifications: 3*3mm--70*70mm; special specifications or all kinds of non-standard products can be formulated according to customer requirements.
Main Specification:
Rotary pump 5MPa,reciprocating pump 10MPa,valve 25MPa
Temperature
-200-600(℃)
Pressure
Rotary pump 5MPa,reciprocating pump 10MPa,valve 25MPa
PH range
0-14
Liner speed
25m/s


How to order:

Item
Order Code
Carbonized Fibre Braided Packing
ZD-P1300
Carbonized Fibre Braided Packing With Graphite
ZD-P1301
High Strength Carbon Fibre Brainded Packing
ZD-P1310
Carbon Fibre Packing With Graphite Impregnated
ZD-P1311
Carbon Fiber Packing with Aramid corner
ZD-P1312

|
