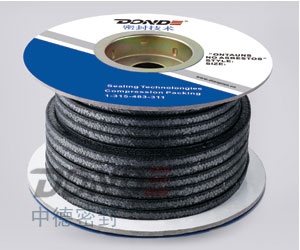

Gland Packing For High Temperature and High Pressure Flange
Item No:ZD-P1010T

Description:Graphite yarn reinforced with inconel wires as a base,re-enforced in four corners with high strength carbon fiber.The packing is lattice braided as carbon achieving maximum strenghth.It's a high strength packing,resists extrusions,ideally suited to the high temperature and high pressure flange.

Application:This packing has applications especially suited to the petro-chemical & refining,pump & paper,sugar and power generation.

Main Specification:

Temperature

-200-+650℃(In the steam)

-200-+455℃ (in the air)

Pressure

28MPa

PH range

0-14

Linear speed

15M/S

Size

3*3mm-60*60mm(or as request)

How to Order:

Item

Order Code

High Temperature and High Pressure Flange Sealing Packing

ZD-P1010T

Special Packing For High Pressure Steam Pump

ZD-P1011T

Reciprocating Pump Gland Packing

ZD-P1020T

Abrasion Resistant Gland Packing

ZD-P1021T

Special Packing for Food and Pharmacy Industry

ZD-P1022T

Gland Packing for Tanker Container

ZD-P1041T

For more information,please contact with us directly,thanks!
