  Product Center

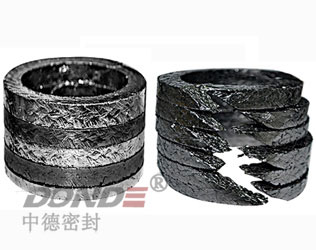

Molded Packing Ring
Item No:ZD-RP1100
Description: Molded Packing Ring? is also called the flexible graphite coil root ring, which is made up of graphite root or various reinforced graphite plates, such as glass fiber reinforced graphite coil root, stainless steel wire reinforced graphite coil root and so on by mould pressing into ring, and the seal of upper and lower end of packing letter can also be used separately, the advantages of disc root and common graphite ring are assembled. The ink pan ring is especially suitable for static sealing such as valves at high temperature and high pressure.
Equipment:
Corrosion resistant, suitable for high temperature, high pressure valve and other static sealing parts.
Industry:
It is recommended for petroleum equipment, power plants, chemical plants and steel mills.
Medium:
Hot water, high temperature, high pressure, steam, heat exchange medium, ammonia, hydrogen, organic solvents, hydrocarbons, cryogenic liquids and so on.
Product specifications :10mm-- 1000mm, special specifications or all kinds of non-standard products can be formulated according to customer requirements.
Main Specification
Temperature
1650℃ Non oxidizing condition
650℃ Steam
450℃ Oxidizing condition
-204℃ Cryogenics
Pressure
9-45MPa
PH range
0-14
Linear speed
2-15m/s
Product Type
Packing ring
Item
Density
Die-Formed flexible graphite ring
ZD-RG1000
1.25~2.0g/cm3
Reinforced graphite ring
ZD-RG1100
Self sealing graphite ring
ZD-RG1010
Molded packing ring
ZD-RP1000
Combined packing ring
ZD-RGP1310
Carbonized fiber packing ring
ZD-RP1300
Carbon Fiber Packing Ring
ZD-RP1310
Kevlar fibre braided packing ring
ZD-RP1400
PTFE fibre braided packing ring
ZD-RP1200

|
Page Down:Combined packing ring
