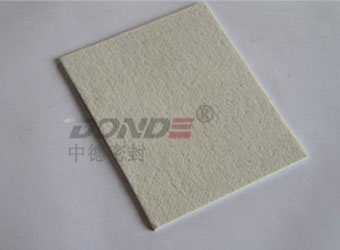

Ceramic Fibre Board

Item No:ZD-GS2081

Description:ZD-CS ceramic fibre board has low thermal conductivity, low heat storage,excellent thermail stability and thermal,excellent toughness.
Application range: Liners of industrial furnace. High temperature liner,vehicle,baffle door;disjunctive board of temperature. High temperature equipment insulation,heat preservation. Spacenavigation, ship building,heat insulation fireproofing,sound insulation,insulation .

Main Specification:

Item Product		COM	ST	HP	HAA	HZ
Categorised Temperature(℃)		1100	1260	1260	1360	1430
Working Temperature(℃)		≤1000	1050	1100	1200	1350
Color		white	white	white	white	white
Density (kg/m3)		260 320	260 320	260 320	260 320	260 320
Rate of Line(%) (24h,Density320kg/m3)		-4 (1000℃)	-3 (1000℃)	-3 (1100℃)	-3 (1200℃)	-3 (1350℃)
Rate of Thermal Conductivity (w/m.k) (Density 285kg/m3)		0.085(400℃) 0.132(800℃) 0.180(1000℃)	0.085(400℃) 0.132(800℃) 0.180(1000℃)	0.085(400℃) 0.132(800℃) 0.180(1000℃)	0.085(400℃) 0.132(800℃) 0.180(1000℃)	0.085(400℃) 0.132(800℃) 0.180(1000℃)
Tensilestrengty (Mpa) (strength10%)		0.5	0.5	0.5	0.5	0.5
Chemical Composi-tion(%)	AL2O3	44	46	47-49	52-55	39-40
	AL2O3+SIO2	96	97	99	99	-
	AL2O3+SIO2+Zro2	-	-	-	-	99
	Zro2	-	-	-	-	15-17
	Fe2O3	<1.2	<1.0	0.2	0.2	0.2
	Na2O+K2O	≤0.5	≤0.5	0.2	0.2	0.2
Size(mm)		Common ：60040010-5；90060020-50 Special size can be made as request.
