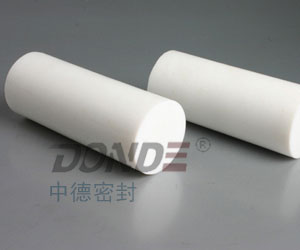

PTFE(Teflon) Rod |
Item No:ZD-GS1602 |
Description:There are three styles of PTFE rod:Pressed PTFE rod,extruded
PTFE rod,die-pressed
PTFE rod. PTFE rods are made by high molecular compound of teflon.
Modified PTF
Rod（ZD-GS1602M）：It
contain some fibreglass,graphite,bronze to improve the character of pure
PTFE.
Main Specification：
Properties |
Unit） |
Result |
Apparent
Density |
g／cm 3 |
2.10~2.30 |
Tensile
Strength(min) |
MPa |
14.0 |
Crack
Elongation(min) |
% |
140 |
Dielectric
Strength(min) |
Kv/mm |
10 |
Styles &
Size：
Types |
Diameter(mm) |
Length(mm) |
Pressed Rod |
2~4 |
as request |
Extruded Rod |
5~120 |
500~3000 |
Die Pressed Rod |
25~300 |
100~300 |
TYPES |
Diameter(mm) |
Length(mm) |
Nominal |
Tolerance |
Nominal |
Tolerance |
SFFBN |
4,5,6 |
+0.48
0 |
100 |
+5.0 |
7,8,9 |
+0.58
0 |
SF×BN |
10,13,15
16,18 |
+1.10
0 |
1000 |
+3.60 |
20,25,30 |
+1.30
0 |
35,40,45
50 |
+1.60
0 |
55,60,65,70,75
80,85,90,100 |
+2.00
0 |
100-300 |
+2.50 |
110,120,130
140,150 |
+2.50
0 |
180,200,250
270,300 |
+3.0
0 |
100 |
+2.0 |
|
|
