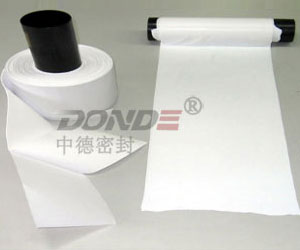

Description:PTFE resin is first
molded into work-blank and then skived.Then PTFE tape is formed. PTFE tape has highly
insulation,chemical resistance and anti-aging characteristic.So PTFE
tape have a wide range of operation temperature.PTFE can be used as
Lining, sealing and lubricating material and dielectric at any
frequencies. Wire insulation, electrical instrument insulation.
Main Specification：
Properties |
Turned PTFE Tape |
Directional PTFE Film |
MPa |
>=15 |
>=30 |
Crack
Elongation(min) (%) |
>=150 |
>=30 |
PH |
0-14 |
0-14 |
Thickness(mm) |
0.5-4 |
0.01,0.015，0.020
0.025，0.030
0.035，0.040，0.05-0.10 |
Length(mm) |
≥1000 |
30-120 |
Wideth(mm) |
100-500 |
>=50000 |
Special size can be made as request. |
