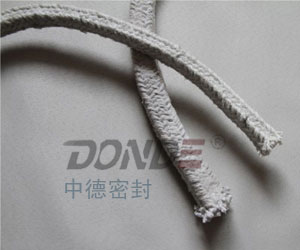

Description:ZD-CC03 ceramic fibre rope braided
by ceramic fiber yarns，contain
core rope and out layer.According to the different working
termperature,the out layer is braided by different ceramic fiber yarn
with S.S. wire or fiberglass yarn. It is used as heat insulation
materials and an excellent substitute for asbestos rope.
Main specification of ZD-CC03:
Temperature |
800℃~1400℃ |
Pressure |
20MPa |
Dimension |
3mm to 100mm(or as required size) |
Ceramic
Fibre Yarn ZD-CC03Y(can
be reinforced with SS wire/glass fibre)
Size：1-5
strands
TEX：400 525 630 780 830 1000
2250
Packing：Carton/Plastic Bag
Main Specification:
Item |
Test Standard |
Test Result |
Chemical Composi-tion(%) |
AL2O3 |
GB/T 6900.4 |
45-48 |
Fe2O3 |
GB/T 6900.3 |
0.7-1.2 |
CaO+Na2O |
GB/T 6900.9 |
0.43 |
Working
Temperature（℃） |
GB/T 11835 |
1200 |
Average Dia of
Fibre（um） |
GB/T 5480.4 |
2-4 |
Line Constriction（1232℃，24h）(%) |
GB/T 11835 |
3.5 |
Coefficient that
Heat Conduct （538℃，8pcf） (W/m.K) |
GB/T 10294 |
0.130 |
