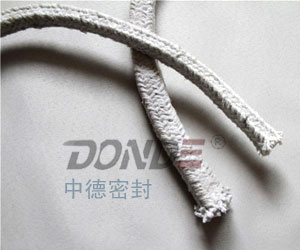

Ceramic Fibre Braided Rope
Item No:ZD-CR

Description:ZD-CR ceramic fibre rope braided by ceramic fiber yarnscontain core rope and out layer.According to the different working termperature,the out layer is braided by different ceramic fiber yarn with S.S. wire or fiberglass yarn. It is used as heat insulation materials and an excellent substitute for asbestos rope.

Main specification of ZD-CR:

Temperature

800℃~1400℃

Pressure

20MPa

Dimension

3mm to 100mm(or as required size)


Ceramic Fibre Yarn ZD-CRY(can be reinforced with SS wire/glass fibre)
Size1-5 strands
TEX
400 525 630 780 830 1000 2250
Packing:Carton/Plastic Bag

Main Specification:

Item

Test Standard

Test Result

Chemical Composi-tion(%)

AL2O3

GB/T 6900.4

45-48

Fe2O3

GB/T 6900.3

0.7-1.2

CaO+Na2O

GB/T 6900.9

0.43

Working Temperature(℃)

GB/T 11835

1200

Average Dia of Fibreum

GB/T 5480.4

2-4

Line Constriction1232℃,24h(%)

GB/T 11835

3.5

Coefficient that
Heat Conduct
538℃,8pcf (W/m.K)

GB/T 10294

0.130


|
