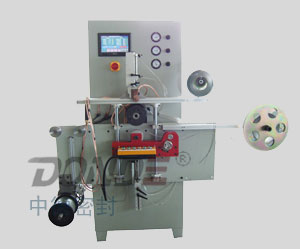

Description:Automatic
spiral wound gasket machine ZD-M300 is designed to improve
productivity, insure the repeatability of quality and
operate simply.just feed metal strip and filler material to
produce spiral wound gasket with inner ring or without inner
ring from 15mm to 500mm. product quantity, revolutions,
gasket size and welding parameter like welding point
quantity and position etc. is set simply by touch screen
interface.When the gasket size reach set diameter the
machine will stop automatically. In this way gasket quality
is controlled strictly as set parameter and it make operate
easily by preform processing of metal strip and automatic
welding.
Particularly with the two
strip loading bodies:
1.traditional platter strip
loading bodies.
2.standard strip loading bodies,
at once feeding 20 - 25 kg.
Options:
1. V or W profile, thk 3.2mm 4.5mm 6.4mm
7.2mm
2. Including molds of ASME 1/2”-10” 150LBS
with inner ring and without inner ring.
Molds of other standard or customized size
are available on request.
Technical Parameter:
Gasket Size |
1/2”-10” with inner ring / without inner ring |
Nominal Thickness |
4.5mm |
Maximum Outer Diameter |
500mm |
Minimum Inner Diameter |
15mm |
Repeatability of Outer Diameter |
±0.2mm |
Rotational Speed |
0 – 312.5 rpm |
Total Power |
8 KW |
Motor Power |
1.5 KW |
Welding Power |
6 KW |
Voltage |
220V |
Air Pressure |
6-8 BAR |
PLC |
XINJIE |
Cycle Time |
20-30s for a 6” 150# |
Dimension |
1800*1100*1900mm |
Weight |
600 KG |
