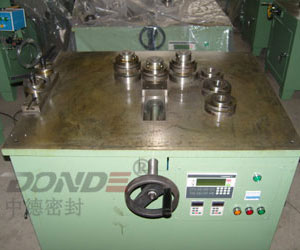

Metal Ring Bender-New style
Item No:ZD-M350B

Description:This machine is designed to produce rings in large quantity. Three rollers are all driving roller. The ID and OD of rings can be set by PLC and automatically adjust rotational speed to make size correct. All rings of different material will be done in one time and work continuously. Feeding metal strip into driving roller and adjust right position, the machine will produce rings according to ID and OD of rings set by touch screen interface.

Technical Parameter:

Ring Thickness
2mm, 3mm, 4mm
Ring Width
6-60mm
Maximum Outer Diameter
4000mm
Minimum Inner Diameter
180mm
Linear Speed
0-200mm/s
Total Power
5 KW
Motor Power
0.75*3KW
Voltage
380V/220V
PLC
XINJIE
Dimension
1050*900*1000mm
Weight
380 KG
