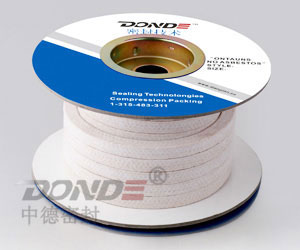

Nomex Fiber Fibre Braided Packing
Item No:ZD-P1410

Description: Nomex Fiber Fibre Braided Packing is braided from high quality Dupont spun Nomex yarns with PTFE-Impregnation and lubricant additive. High cross-sectional density and structural strength, good sliding characteristic, gentle on shaft surfaces. Compared to Kevlar, it do not hurt shaft, also ideal for food industries.

Application: A universal, wear-resistant packing that is nevertheless gentle to shaft surface. Designed specially for pumps, agitators, mixers, kneaders, refiners etc. It’s excellently suitable for standardization in entire industrial sectors, e.g. pulp and paper, sugar production, breweries, sewage systems, water conditioning for power stations, for cooling water and abrasive river water, in turbine oil circuits, and other areas requiting a clean, and easy-to-install packing.

Main specification:

Temperature

-100℃~+280℃

Pressure

25bar(revolving) 50bar(reciprocating) 100bar(flange)

PH Range

1-13

Linear Speed

20m/s(revolving) 2m/s(reciprocating) 2m/s(flange)

Density 1.3g/cm3

Size

3*3mm-60*60mm(or as request)

How to Order

Item

Order Code

Kevlar Fibre Braided Packing

ZD-P1400

Kevlar Fibre Packing With Silicon Rubber Core

ZD-P1401

Nomex Fibre Braided Packing

ZD-P1410

Spun Kevlar Fiber Packing

ZD-P1430

Graphited Spun Aramid Fiber Packing

ZD-P1431

For more information,please contact with us directly,thanks!


|
