　　Product Center

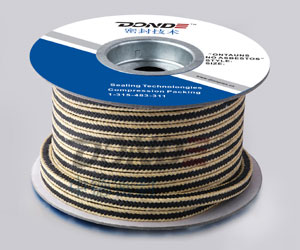

Graphite PTFE Packing with Aramid corner
Item No:ZD-P1420

Description:PTFE graphite packing aramide corners is used to prevent gap extrusions within the high pressure and temperature. PTFE graphite packing aramide corners is with perfect sliding velocity and thermal conductivity. This gland packing is recommended for piston pumps long service live. PTFE graphite packing aramide corners can be used to seal water.Sewage water,hot water.It can also be used to seal oils,greases,gases.,weak acids and alkaline solutions,abrasive media.

Main Specification:

Temperature

-100℃~+260℃

Pressure)

35MPa

PH Range)

2-13

Linear Speed)

25M/S

Size

3*3mm-60*60mm（or as request）

How to Order：

Item

Order Code

PTFE Graphite Fibre Packing（12% carbon）

ZD-P1210

PTFE Graphite Fibre Packing（25% carbon）

ZD-P1211

PTFE Graphite Fibre Packing With Oil

ZD-P1214
PTFE Graphite Filament Yarn Braided Packing ZD-P1215

PTFE Packing With Kevlar Fibre Corner

ZD-P1420

PTFE Graphite Packing Inter Aramide

ZD-P1421

Parameter:

INCH ″

1/8

5/32

3/16

1/4

5/16

3/8

 7/16

1/2

9/16

5/8

11/16

3/4

7/8

1

MM

3

4

5

6

8

10

11

12

14

16

18

20

22

25

M / KG

50

40

27

15

10

7.5

5.6

4.3

3.1

2.8

2.4

1.9

1.4

1.1

For more information,please contact with us directly,thanks！

|
