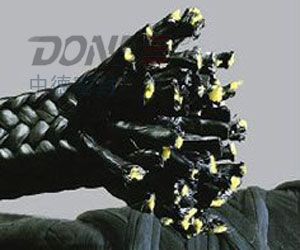

Description:Graphited
Spun Aramid Fiber Packing is mixed high quality braided packing, made from aramid fiber yarns
impregnated with graphite. It can prevent from gap extrusion under high
temperature and pressure. It can be used to seal a long life cycle of
highpressure industrial pump.
Application
This is a universal packing which can be used for pumps in all types of
industry.
Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp
and paper mills,etc.
It
can be used to seal water, sewage, hot water, oil, grease, gas, weak
acid, strong base of deep fluid and something with abrasive media.
Prime Features
For hot water application it can be used uncooled up to 160 oC.
No
harm to shaft, still wearable, good heat conduction.
Main specification:
Temperature |
-100℃~+260℃ |
Pressure |
12MPa |
PH Range |
2-13 |
Linear Speed |
25M/S |
Size |
3*3mm-60*60mm（or as request） |
How to Order：
Item |
Order Code |
Kevlar Fibre Braided Packing |
ZD-P1400 |
Kevlar Fibre Packing With Silicon
Rubber Core |
ZD-P1401 |
Nomex Fibre Braided Packing |
ZD-P1410 |
Spun Kevlar Fiber
Packing |
ZD-P1430 |
Graphited Spun Aramid Fiber Packing |
ZD-P1431 |
For more information,please contact with
us directly,thanks！
