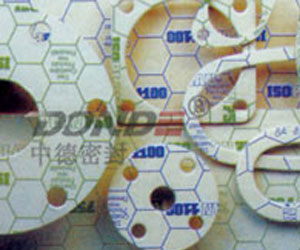

Frenzelit ISOPLAN 750, 1100 gasket |
Item No:Frenzelit ISOPLAN 750, 1100 |
Description: ISOPLAN 1100, with special ceramic fiber, mineral filler, mixing filler and adhesive, has the characteristics of high temperature resistance, because the thermal conductivity is small, and the adiabatic is very good. Being able to withstand very high temperature and very small thermal conductivity determines the application scope of ISOPLAN insulation pad as insulation material.
The ISOPLAN high temperature insulation pad has a good equilibrium density, so it is suitable for high temperature insulation, and it is also suitable for the noble gas seal with the highest internal pressure of 3bar. Reasonable safety and good functions are necessary when using ISOPLAN high temperature insulation gaskets, to ensure that the surface pressure of the use is not more than 10N/mm2 and the minimum width of the gasket is considered.
Normal size: 1000*1000mm
Thickness: 1.5mm, 3.0mm, 5.0mm
Frenzelit ISOPLAN 750, ISOPLAN 1100, high temperature insulation gasket, performance parameters: |
|
|
